PRODUCT OverviewPRODUCT CENTER

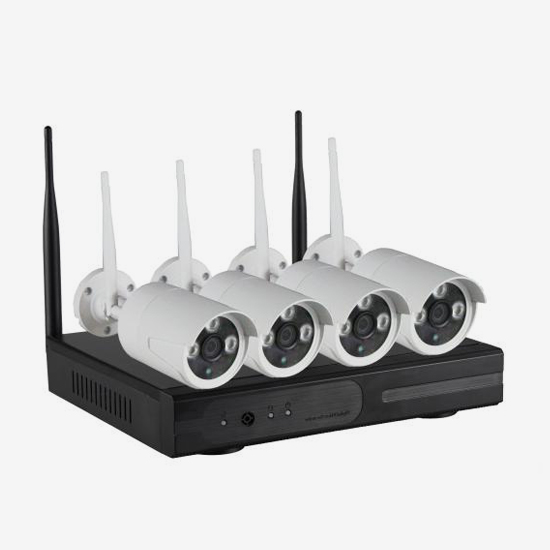

AG-WK4420 4CH WIFI Camera NVR KIT

4CH 1080P Wireless Transmission Intelligent System Outdoor 2.0MP Wifi IP Camera NVR Kit
1)1pc Wifi NVR, 4CH 720/960/1080P Wireless NVR, Support 1 SATA(without)
2) 4pcs 1080P Wifi Bullet Cameras, 1/3"OV CMOS,3.6mm lens,3pcs IR LEDs
3) 1pc CAT5 Cable: CCTV Network CAT5 Cable 1.2M length
4) 4pcs Power Adaptor: CCTV DC12V-1A Power Adaptor

Product Description


4CH 1080P WIFI Camera NVR Kit Features:
Plug and Play Technology-Easy Installation FULL HD WIFI 4CH NVR Kit
1HDD Max 4TB recording and H.264 Video Compression
1080P IP Camera Resolution provide high definition picture

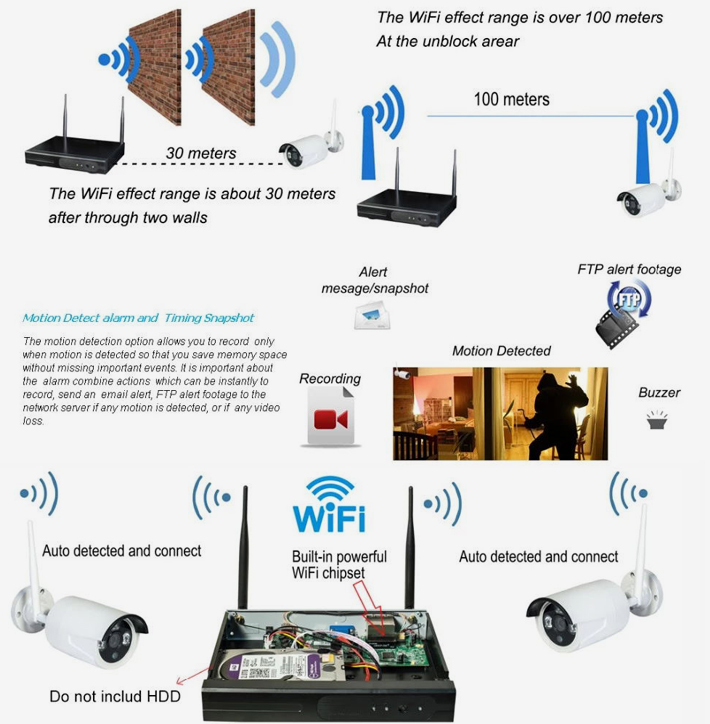

Smart Wi-Fi to monitor your home without cable
Support APP Push Notifications and Email alert with snapshot and playback
It is support smart-phone APP View, PC Software and Browser View
APP Multi-Language support:EN,NL,FR,DE,IN,IT,JP,KR,NO,PL,PT,RU,ES,TR
APP Name: Eseecloud/IP Pro

Specification:

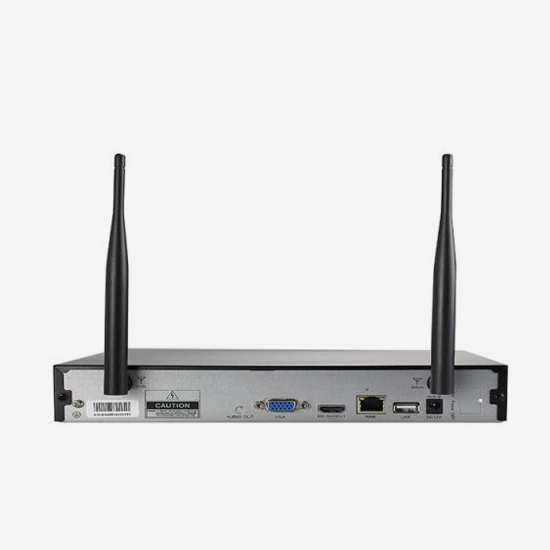

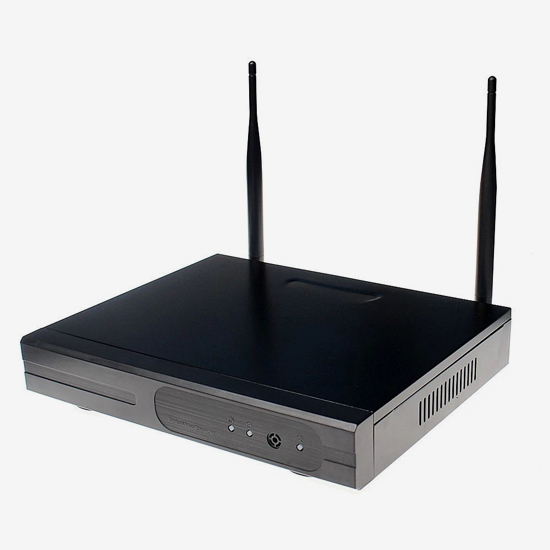

Wifi NVR

Model

NVR-6004W

Product Name

4CH 1080P WiFi NVR

GUI

16-bit True Color

Operating System

Embedded Linux OS

Compression

H.264

Password security

1 User: Admin

Video Input

1080P WiFi IP Camera x4

Audio Input

Optional

Decoding resolution

1080P/720P

VGA output

1024*768,1280*720,1280*800,1280*1024,
1440*900,1920*1080P (1080P)

HDMI output

1024*768,1280*720,1280*800,1280*1024,
1440*900,1920*1080P (1080P)

Audio output

1ch RCA

Playback resolution

1080P/720P

Synchronous playback

4CH

SATA Devices

1 x 1TB HDD (not included)

Maximum capacity

4TB

External HDD

1 x e-Sata

USB Connector

2 x USB2.0

Network Interface

RJ 45,10M/100 M Ethernet,  ieee802.11 b/g/n  support AP Mode, dual antenna

Network protocol

IPv4, TCP/IP, SMTP, SSL, HTTP, DHCP, NTP, P2P

Mobile Device

iPhone, Android Phone

System Upgrade

USB Local Update

Remote Software

Reolink APP, IE Browser, Firefox Browser, Reolink Client(Windows/Mac)

Power Supply

Input 100~240V, 12V 2A

Consumption

<15W

Working temperature

-10~+55(14°F~131°F)

Working humidity

10%~90%

Dimension ( mm )

260(W) x 41(H) x 230(D)

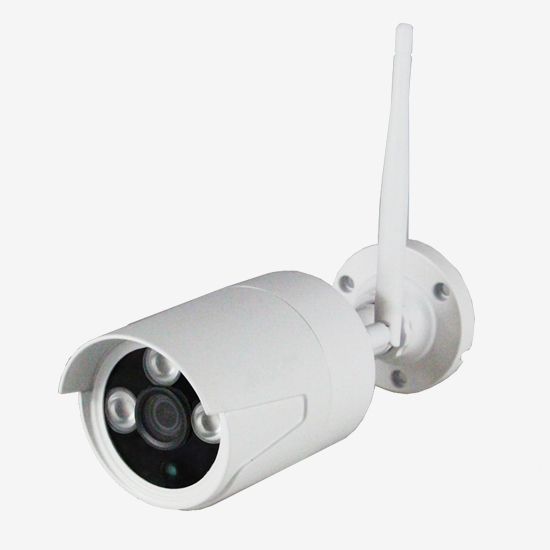

Wifi IP Camera

Model

AG-IPH6620-W

Type

1080P WiFi IR Bullet IP Camera

Image Sensor

1/3"OV CMOS

Effective Pixels

1280 x 1080(2.0Megapixel)

Lens

3.6mm lens

Angle of View

Horizontal: 90°, Vertical: 46°

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR LED

3pcs IR LED

IR Distance

30M

Backlight Compensation

Support

Noise Reduction

3D DNR

Audio Compression

AAC

Audio Interface

optional

Network Interface

One 10M/100Mbps RJ45

Power Supply

DC12V
